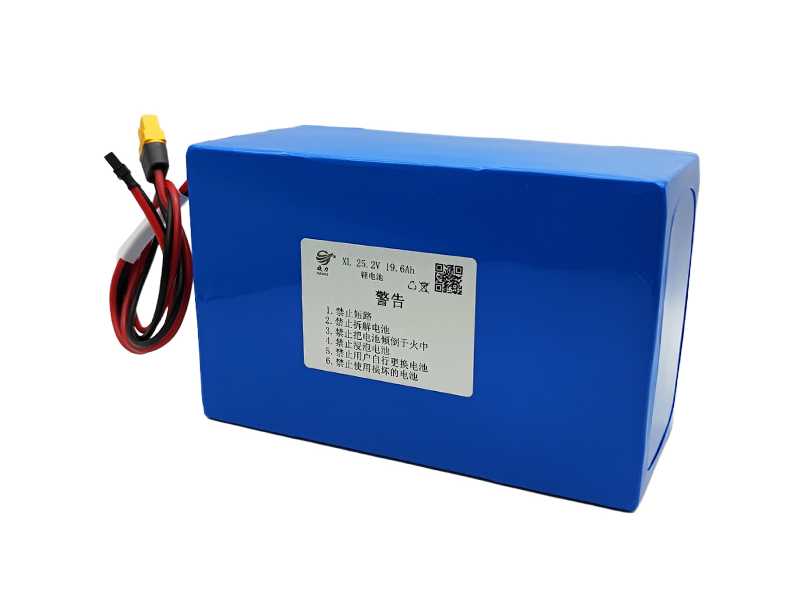

25.2V cylindrical lithium battery product model: XL 25.2V 19600mAh
Technical parameters of 25.2V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 21700
· Single cell voltage: 3.6V
· The nominal voltage of the battery pack after assembly: 25.2V
· Single battery capacity: 4.9Ah
· Battery combination method: 7 series and 4 parallel
· The voltage range of the combined battery is 17.5 to 29.4V
· Battery capacity after combination: 19.6Ah
· Battery pack power: 493.92Wh
· Battery pack size: 78*90*155mm
· Maximum discharge current: <9.8A
· Instantaneous discharge current: 19.6-29.4A
· Maximum charging current: 0.2-0.5C
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI）
25.2V cylindrical lithium battery
· Comply with relevant national standards and requirements for batteries
· All battery products are calibrated and tested before leaving the factory and can be used directly and normally.
