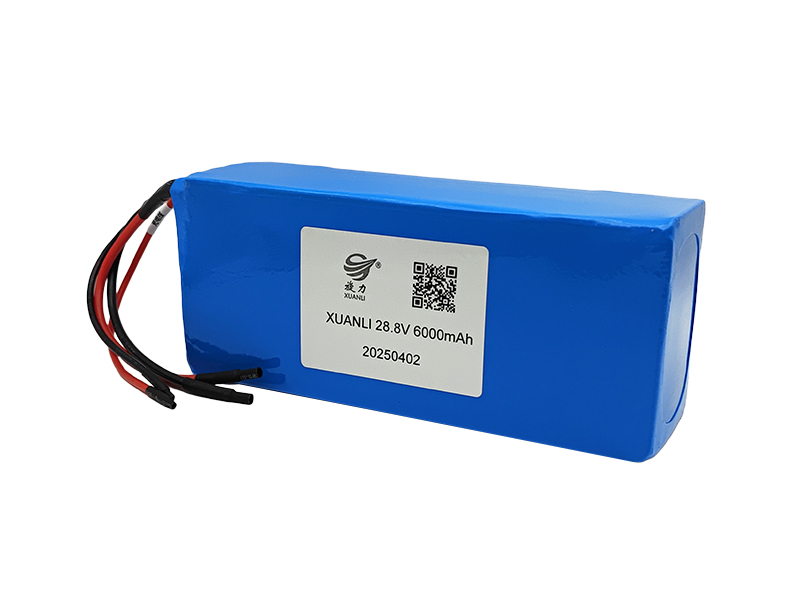

Product model: XL 28.8V 6000mAh imported cylindrical lithium battery
Technical parameters of 28.8V imported cylindrical lithium Battery (Specific design according to customer requirements - voltage/Capacity/size/circuit)
Single battery model: 18650
· Single cell voltage: 3.7V
· The nominal voltage of the battery pack after combination: 28.8V
· Single-cell battery capacity: 3.0Ah
· Battery combination method: 8 series and 2 parallel
· The voltage range of the combined battery is 24v-33.6v
· Battery capacity after combination: 6ah
· Battery pack power: 172.8Wh
· Battery pack size: 42*74*155mm
· Maximum discharge current: < 6A
· Instantaneous discharge current: 12A-18A
· Maximum charging current: 0.2-0.5c
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI)
28.8V imported cylindrical lithium battery
Comply with the relevant national standards and requirements for batteries
All battery products have been calibrated and tested before leaving the factory and can be used directly and normally.
